Product Name:

Temperature and Humidity Test Chambers

Temperature and Humidity Test Chambers 100L
100L

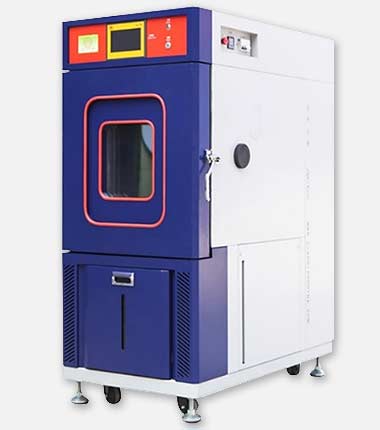

Temperature and Humidity Test Chambers 150L
150L

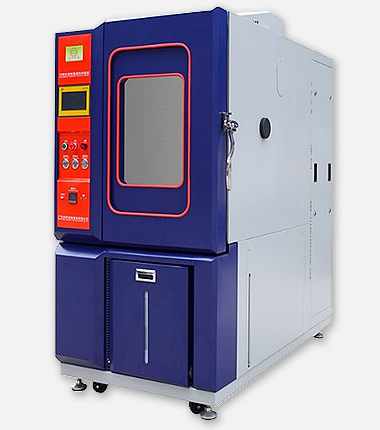

225L

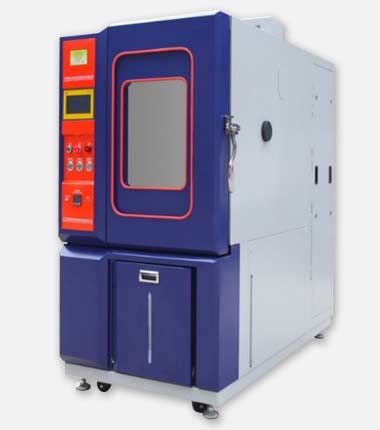

Temperature and Humidity Test Chambers 408L
408L

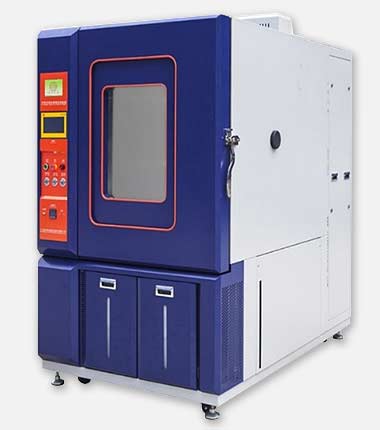

Temperature and Humidity Test Chambers 800L
800L

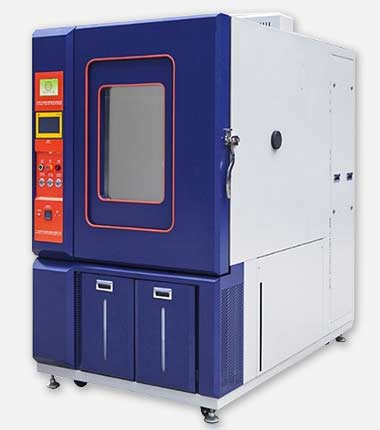

Temperature and Humidity Test Chambers 1000L
1000L

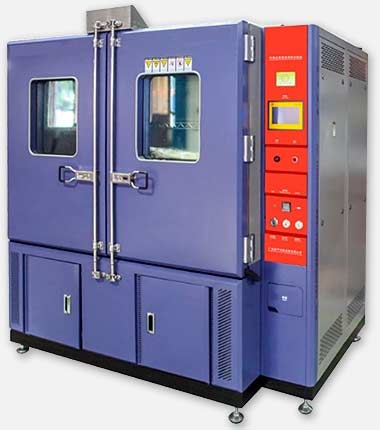

Temperature and Humidity Test Chambers 1200L
1200L

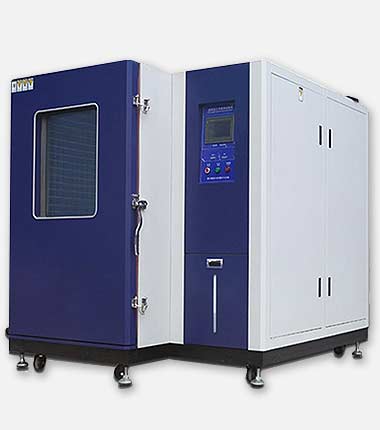

Temperature and Humidity Test Chambers 1400L
1400L

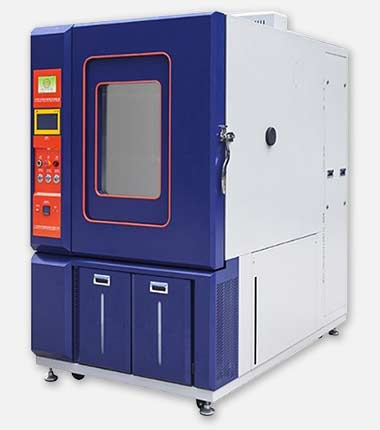

Temperature and Humidity Test Chambers 1500L
1500L
Function
  • Apply in material fields to test functions like heat resistance, cold resistance, dry resistance, and moisture resistance.
Core strength
  • Unique refrigerant servo valve controls flow, energy saving over 30%
  • At 85°C and 85%RH, no need to on the compressor
  • Metering result report
  • Quad-insulation, non-fogging or formation of water droplets
  • Energy saving up to 35%
  • No frost for long-term low temp and humidity condition
Product Specification
Capacity100L150L225L408L800L1000L1200L1500L
Inner size (W*D*H)(cm)50*40*5050*50*6070*46*7070*75*80100*80*100100*100*100150*80*100150*100*100
Outer size (W*D*H)(cm)70*125*15770*135*16790*157*18590*188*195120*185*215120*295*215200*135*215150*100*100
Net weight (kg)30036043053078089011001380
Exterior materialStandard 1.5mm electrolytic plate electrostatic spray paint
Interior materialHard urethane foam
Control systemPWM control
Temp rangeModel S: -70℃ to 150℃;
Model L: -40℃ to 180℃;
or customized
Humid range10%RH to 98%RH
T/H Fluctuation±0.5℃
T variation in space±2℃
T pull down rate1℃/min;
or customized
T heat up rate3℃/min
LanguageChinese / English / Russian
Configuration interfaceWith USB, WLAN, RS232 port, APP function is optional
Power supplyAC 220 or AC 110V or AC 380V 50Hz
