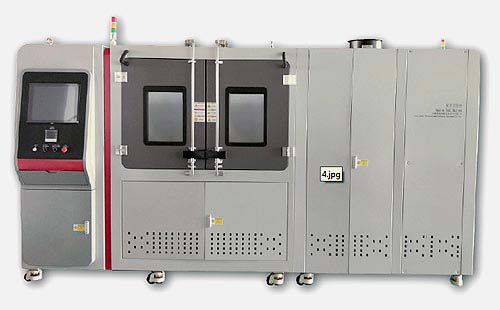

| Model | GTS 01-1 |
|---|---|
| Test Medium | Hydraulic oiI,ATF oiI,mineraI oiI,brake oil,fueI,and so on. |
| Application | Powered steering tube,brake tube,air conditioning tube,fueI tube, condenser,evaporator,oil cooIer,steeI pipe,Bundy pipe,and so on. |
| Applicable Standards | QC/T664. TL82415. TL82253. SAEJ188. SAEJ1681 SAEJ191. SAE J1532. SAEJ517 GMW14319. GMW8150. GMW15964. GMW16171. GM6210. GM6260. PF90335. ES 6G91-3A719-AAPAS. ES3R23-3A212-A |
| Pressure | 0-14,500psi |
| Medium Temperature | -50-250°C (-58-482°F) |
| Testing Chamber Temperature | -50-250°C (-58-482°F) |
| Frequency | 0-2Hz |
| Waveform | Sine,TrapezoidaI,Triangular |
| Simultaneous Test | 2-10pieces |
| Testing Cycles | 0-10miIIion cycles |

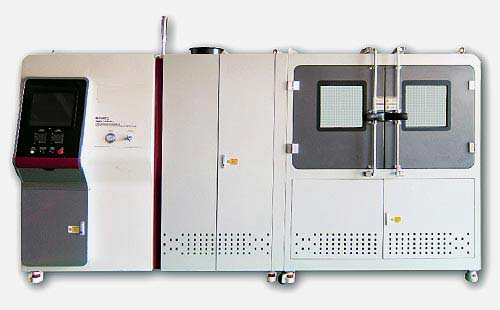

| Model | GTS WI-1 |
|---|---|
| Test Medium | coolant,water,gIycoI,brake fIuid,etc |
| Application | Rubber cooling water tube,metaI cooling water tube,radiator, ventilation core,heater. |
| Applicable Standards | QC/T468. TL52361. TL52361. GMW14329. GMW15904 GMW14785. GMW16295. GM6278. JISD2602. D321WH-A(HONDA). PF90080. PF11118-200. ESDG93-8C012-AA. ESDG93-8260-AA. B22 6142-10-2007-D DIN 73411-2. DIN73411 |
| Pressure | 0-300psi |
| Medium Temperature | -50-200°C (-58-392°F) |
| Testing Chamber Temperature | -50-200°C (-58-392°F) |
| Frequency | 0-3Hz |
| Waveform | Sine,TrapezoidaI,Triangular |
| Simultaneous Test | 2-10pieces |
| Testing Cycles | 0-10miIIion cycles |

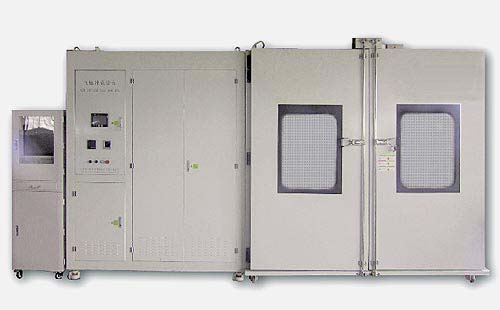

| Model | GTS-GI-1 |
|---|---|
| Test Medium | Compressed air,Nitrogen |
| Application | IntercooIer,turbo-charging hose,NyIon tube,engine manifold tubes and testing pieces using compressed air as medium. |
| Applicable Standards | QC/T 828. GK1W15803. GL1W16153. GK1W 14 10 I EA21 I WACA-ESHV1G-6C896-AA1. VOLVO-K413-00 186805(V4). Geely-NL-3. VOLVO-Ch1A. JLR L550-TPJLR-03-011 SPA-TR CAC 31838680 I FORD C2-3 Charge Air Cooler ESJX61-6K77ñ-AA (2014 07 1 I ). NISSAN-L42P-14461 NDS00[1]. BMW-G2X-10.5.1_Kuehlmodul G2x_10533102_Alliage |
| Pressure | 0-300psi |
| Medium Temperature | RT+30-300°C ( RT+86-572°F ) |
| Testing Chamber Temperature | -50-200°C (-58-392°F) |
| Frequency | 0-2Hz |
| Waveform | Sine,TrapezoidaI,Triangular |
| Simultaneous Test | 2-10pieces |
| Testing Cycles | 0-10miIIion cycles |

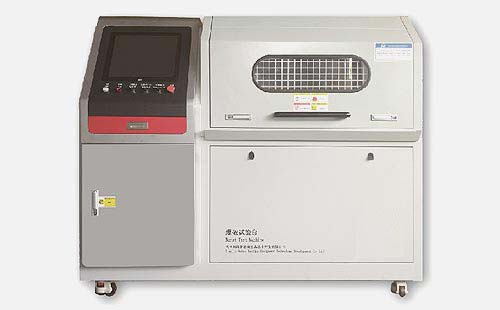

| Model | GTS-GHB-1 |
|---|---|
| Test Medium | water,water-glycol and hydraulic oil |
| Application | radiator,condenser,evaporator,intermediate cooIer,core and fan heater, oil cooler,heater,pressure meters,fire equipment,metaI joints,vaIves,hose assembly,pipeIine,pipe,pressure containers and pressure transmitter. |
| Pressure | 0-72,000psi |
| Pressure Rise Rate | 50-43,000psi/min |
| Medium Temperature | RT-180°V ( RT-356°F ) |
| AMBIENT TEMPERATURE | -60-180°C ( -76-356°F ) |
| TESTING SAMPLES ID | ϕ/8-6in |
| LENGTH OF TEST SAMPLES: | 4-40in |

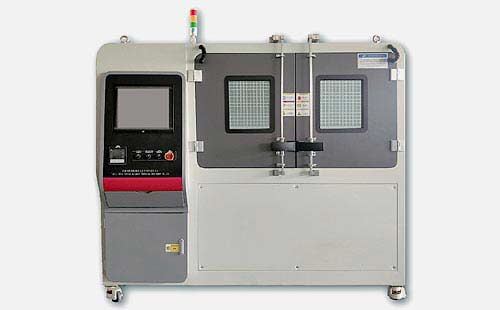

| Model | GTS-HSB-1 |
|---|---|
| Test Medium | Hydraulic oil,water,antifreeze,glycol |
| Application | Automobile brake hose,power steering pipe,cooIing system pipeline, fuel system pipeIine,air conditioning system pipeIine,engineering hydraulic hose,metaI pipe,pressure gauge,connector,etc |
| Pressure | 0-58,000psi |
| Pressure Rise Rate | 50-43,000psi/min |
| PRESSURE CONTROL ACCURACY | ±1%FS |
| Medium Temperature | RT-180°C ( RT-356°F ) |
| AMBIENT TEMPERATURE | -60-180°C ( -76-356°F) |

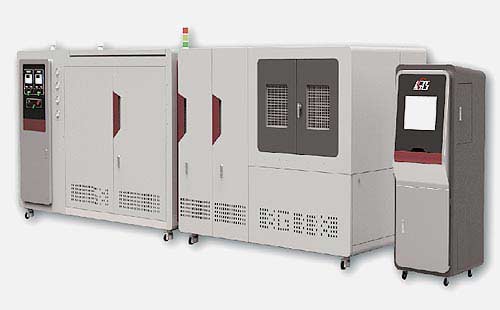

| Model | GTS-TC-1 |
|---|---|
| Application | Automobile water tank,condenser,evaporator,warm air core,oiI cooler, water cooIer,pipeIine. |
| Application Standard | JB/T 10505-2005. JB/T 8577-2005. QC/T 468-2010. GMW14193 TL874 Thermal cycle TL 82406 VW. S86AB-8005-AA III ES6G91-8005-AA. ESJX61-8005-AA. |
| TEMPERATURE SCOPE OF HIGH TEMPERATURE FLUID BATH | 50~250°C (122-482°F) |
| TEMPERATURE SCOPE OF LOW TEMPERATURE FLUID BATH | -50~50°C (-58-122°F) |
| TEMPERATURE OF AMB IENT CHAMBER | -40~150 ±2°C (-40-302 °F) (optional); |
| IMPACT FREQUENCY | 1~30times/hour (Adjustable) |
| FLOWRATE OF IMPACT MEDIUM | 5~800L/min; |
| IMPACT MEDIUM | anti-freezing soIution,oiI and glycol; |
| SIMULTANEOUS TEST | 1~4pieces; |
| TEST PRESSURE | 0-70psi (Adjustable) |
| TEST CYCLES | 1~99999cycles |

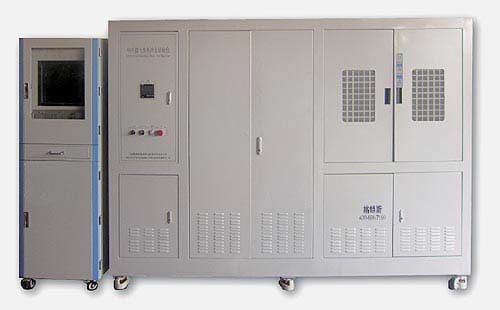

| Model | GTS-TS-1 |
|---|---|
| Application | Charge Air Cooler |
| Application Standard | QC/T828-2010 |
| MEDIUM FLOWRATE | set between 300 and 3000kg/h(set at will) |
| AMBIENT TEMPERATURE | -40~150°C (-40-302°F) (optional); |
| HIGH TEMPERATURE SCOPE OF MEDIUM | 90~300°C (194-572°F) |
| LOW TEMPERATURE SCOPE OF MEDIUM | 10°C~80°C (50-176°F) |
| Test Medium | Compressed Air |
| IMPACT FREQUENCY | 1~30time/hour (Adjustable) |
| SIMULTANEOUS TEST | 2~4pieces; |

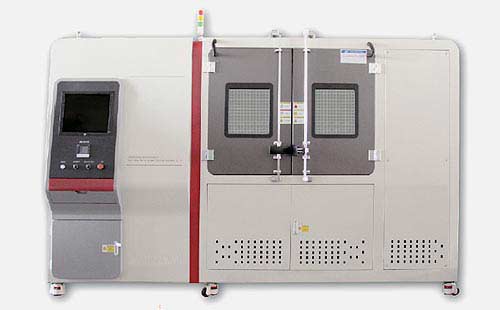

| Model | GTS IC-1 |
|---|---|
| Application | Automobile water tank,warm air core,water cooling pIate,oiI cooler, condenser,evaporator heat exchanger and other products |
| Application Standard | ASTMD2570QC. T468-2010. GMW14167. GMW15737 |
| FLOW RATE OF THE CORROSIVE LIQUID | 1-2000L/min ( It can be set ) |
| TEMPERATURE OF CORROSIVE LIQUID | Room temperature until 125°C ( 257°F ) (It can be set). |
| Pressure | 0-70psi ( It can be set ) |
| NUMBER OF TEST SAMPLES | it can provide 1-4 sample for test simultaneously |
| THE VOLUME OF TEST SAMP YES | <100L |
| MODE OF CONTROL | Pressure and flow rate can be controlled simultaneously |
| CORROSION TYPES | Continuous corrosion,intermittent corrosion,high and low temperature alternating corrosion |

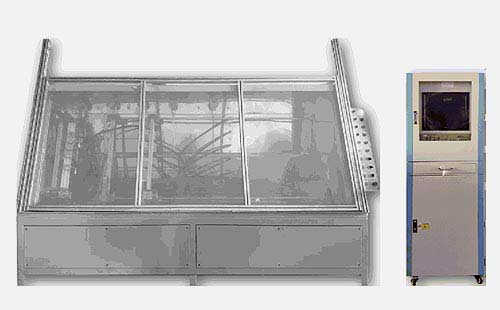

| Model | GTS-PH-1 |
|---|---|
| Application | Steel-wire weaving hose,spiraI wire hose,power steering hose,air conditioning pipe |
| TEST PRESSURE | 0-30,000psi |
| TEST MEDIUM | water. hydraulic oil |
| SIMULTANEOUS TEST | 1~20 pieces |
| TEST PROCESS | flushing--pressure holding--blow and dry (optional HYDAC cleanliness tester) |
| HOSE CONNECTION | quick connector |
| THE MODE OF CONTROL | Touch screen or computer control. |

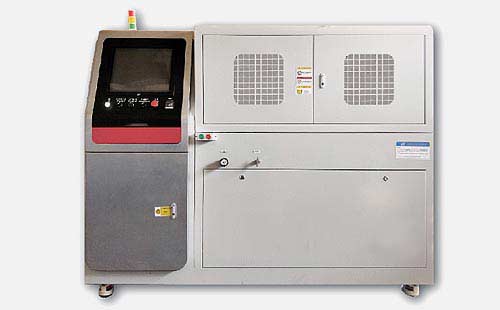

| Model | GTS-AL-1 |
|---|---|
| Application | Small valves, pipelines,meters,sensors,auto parts,downhoIe tools and other pressure components |
| TEST PRESSURE | 0-15,000psi ( Any pressure grade can be chosen according to actual needs ) |
| MEDIUM | Compressed air,Nitrogen gas |
| SIMULTANEOUS TEST | 1 piece |
| LEAKAGE DETECTION METHOD | leakage detector, pressure drop method,air bubble method, differential pressure method. |

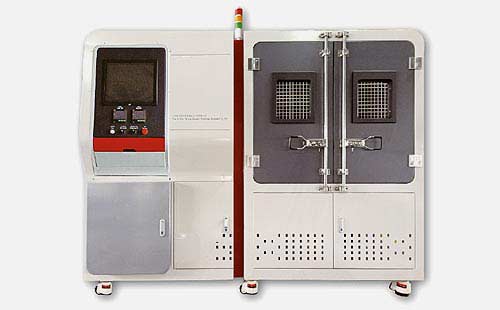

| Model | GTS-V-1 |
|---|---|
| Application | Automobile pipeIine,hydrauIic hose,aII kinds of parts under vacuum pressure |
| Application Standard | IS06803 and others |
| Vaccum PRESSURE | 0-29.5inHg (14.5psi) |
| PRESSURE HOLDING TIME | 0~9999Min |
| MEASURING ACCURACY | ≤±1%F.S; |
| INNER DIAMETER OF HOSE | 1/8-2.5in length:8-50in |
| CONTROL MODE | Meter control or computer control |
| SIMULTANEOUSLY TEST | 1 |
