Rain Test Chambers

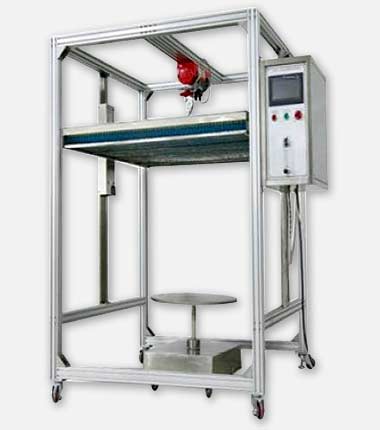

MS88 Test chamber - Rain Test Chambers Rain Open IPX1 IPX2
Rain Open IPX1 IPX2

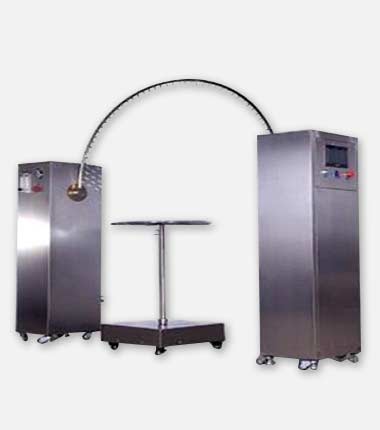

MS88 Test chamber - Rain Test Chambers Rain Open IPX3 IPX4
Rain Open IPX3 IPX4

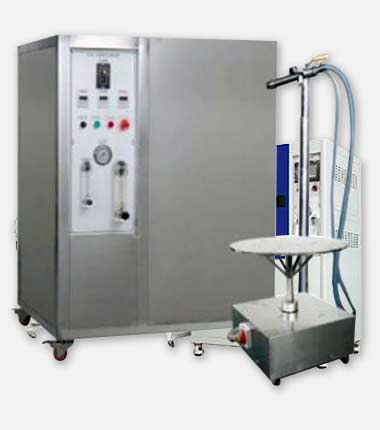

MS88 Test chamber - Rain Test Chambers Rain Open IPX5 IPX6
Rain Open IPX5 IPX6

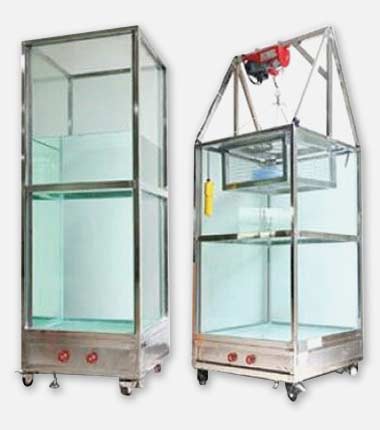

MS88 Test chamber - Rain Test Chambers Rain Shower IPX7 IPX8
Rain Shower IPX7 IPX8

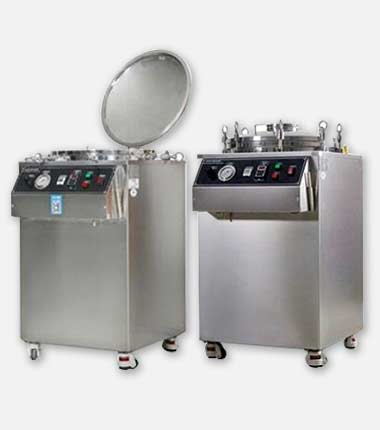

MS88 Test chamber - Rain Test Chambers Rain Deep Water IPX8
Rain Deep Water IPX8

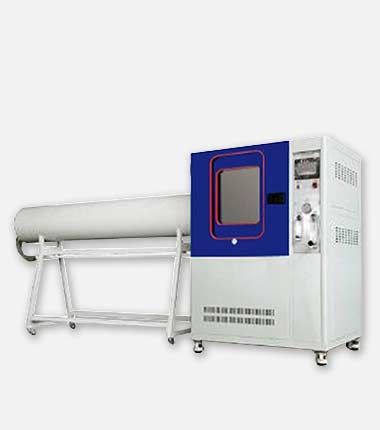

MS88 Test chamber - Rain Test Chambers Rain Box IPX123456
Rain Box IPX123456

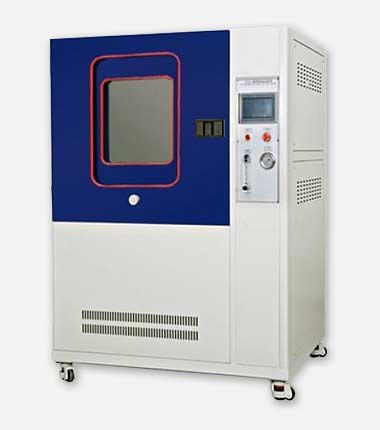

MS88 Test chamber - Rain Test Chambers Rain Box IPX3 IPX4
Rain Box IPX3 IPX4

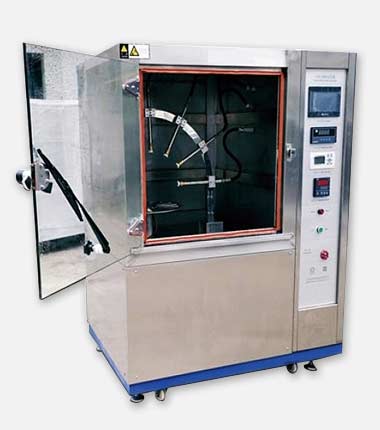

MS88 Test chamber - Rain Test Chambers Rain Box IPX9
Rain Box IPX9
Function
  • Applicable to electrical and electronic products (Including componenets), lighting products, automotive and motorcycle parts and seals and their products for shell production level test (IP waterproof level test), simulating that its products may be exposed to water during transportation and use.
  • Test for rain conditions affected by splashing water, and tests for the good performance of the outer casing when it is exposed to rain or after splashing.
Type:
  • Open IPX1, IPX2 raining machine
  • Open IPX3, IPX4 raining machine
  • Box type IPX3, IPX4 shower box
  • Open IPX5, IPX6 raining machine
  • IPX7, IPX8 shower box
  • IPX8 deep water test chamber
  • IPX9 box type shower box
Product Specification
Model50080010001800
Inner Size (W*D*H)(cm)500*500*500800*800*8001000*1000*10001000*1500*1200
Studio Temp RangeRT
Waterproof LevelIPX1, IPX2 / IPX3, IPX4
Nozzle DiameterStandard color steel plate/cold-roll steel sheets with coating/laminating metal sheet
Interior material0.4mm
Other parameters
  1. Water spray hole spacing 50mm
  2. Swing tube inner diameter 15mm
  3. The diameter of the turnable is 600mm (Can be equipped with 200mm, 400mm table top)
  4. Flow rate 0-3L/min
  5. Pendulum angle 120⁰ (IPX3), 350⁰ (IPX4) or customize
  6. Swing tube swing speed 240⁰ back and forth 4s, 720⁰ back and forth 12s (Precise control) or customize
  7. Turnable lifting height 550-1,000mm
  8. The turnable bears about 50kg
  9. Turnable speed 1-5r/min (Adjustable accuracy)
Waterproof LevelIPX1, IPX2IPX3, IPX4IPX5, IPX6IPX7, IPX8
Studio Temp RangeRT
Nozzle Diameter0.4mm0.4mm6.3mm, 12.5mm--
Other Parameters for IPX1, IPX2
  1. The drip area and drip height can be customized according to the actual size of the product.
  2. The drip strength is 1.9-3.8L/H
  3. The drip aperture, diameter = 0.4m
  4. The hole spacing = 20mm
Other Parameters for IPX3, IPX4
  1. The radius of the pendulum tube can be customized according to the product size.
  2. If the IPX4 test require a water spray head, the instructions should be made when ordering.
  3. The radius of the swing tube is 200mm, 400mm, 600mm, 800mm, 1000mm, 1200mm, 1400mm, 1600mm, which can be customized.
  4. The spray volume of each nozzle is 0.07L/min
  5. The center distance of the hole is 50mm
  6. The angle of the swing tube is 1-135⁰ from the center to the sides.
Other Parameters for IPX5, IPX6
  1. The spray volume of the 6.3mm nozzle is 12.5L/min
  2. The severity is 75L/min
  3. The spray volume of the 12.5mm nozzle is 100L/min
  4. The spray distance is 2.5-3m
Other Parameters for IPX7, IPX8
  1. IPX7 uses the water tank method
  2. IPX8 uses pressurized water tank method
Model50080010001800
Inner Size (W*D*H)(mm)500*500*500800*800*8001000*1000*10001000*1500*1000
Nozzle Test Angle0⁰, 30⁰, 60⁰, 90⁰ (Verticle direction)
Nozzle Distance100-200mm (Can be adjusted manually)
Water Spray Flow14-16L/min
Water Spray Pressure8,000-10,000kPa
Test Time120s (30s per location)
