Product Name:

Thermal Shock Test Chambers (2 zones & 3 zones)

MS88 Test Chamber - Thermal Shock Test Chambers 2 Zones
2 Zones

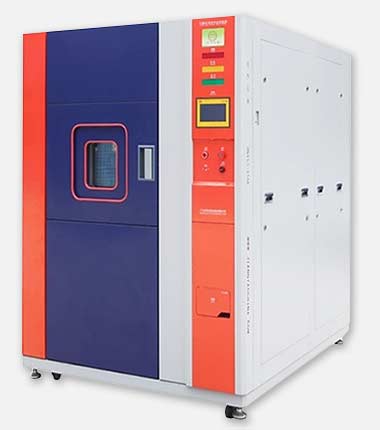

MS88 Test Chamber - Thermal Shock Test Chambers 3 Zones
3 Zones
Function
  • Use to evaluate the adaptability of the product to the rapid changes in the ambient temperature, the indispensable test in the identification test of the equipment design and the routine test in the batch production phase.
  • Use in environmental stress screening tests in some cases.
Core strength
  • Unique refrigerant servo valve controls flow, energy saving over 30%
  • Adopt new patent (ZL 2016 2 0140050.4), Long-term test without defosting
  • Metering result report
  • Optimize the air circulation efficiency of the air duct structure Patern (ZL 2016 2 0140737.8)
  • Energy saving up to 35%
  • Intelligent load vector adjustment, refrigeration heating technology
Product Specification
PDF file
Capacity 50L 80L 100L 150L 225L 408L 800L 1000L
Inner size (W*D*H)(cm) 40*32*42
35*32*40		 50*40*42
50*40*40		 55*45*42
50*50*40		 68*50*45
65*50*46		 75*60*50
65*70*50		 80*80*60
85*80*60		 100*100*80
100*100*80		 100*125*80
100*125*80
Outer size (W*D*H)(cm) 140*140*188
125*160*185		 150*140*188
135*170*185		 155*150*188
140*185*190		 170*168*195
160*190*205		 180*198*205
160*230*210		 195*230*235
180*280*240		 230*268*270
320*260*240		 230*320*270
320*290*240
Net weight (kg) 800 900 950 1050 1250 2800 3600 4500
Temp range Type A: -40℃-150℃;
Type B: -55℃-150℃;
Type C: -60℃-150℃
Heating time (High T) RT to 200℃ take about 30 mins
Cooling time(Low T) RT to -70℃ take within 60 mins
Temp transfer time 3 zones: Low T to High T takes about 3-5 mins;
2 zones: Low T to High T takes about 3-5s
Temp stable time 5-10 mins
Temp fluctuation range ±0.5℃
Cabinet material Outer box: Standard foot 1.5mm electrolytic spray paint
Inner box: Standard 1.2mm thick SUS#304 stainless steel plate (Matte treatment)
Insulation material High density rock wool + high temp resistance high density polyurethane foam
Control system PWM control: Semi-sealed two-stage compressor (Water cooled) / Fully sealed two-stage compressor (Air cooled)
Cooling system Semi-sealed two-stage compressor (Water cooled) / Fully sealed two-stage compressor (Air cooled)
Power supply AC/380V, 50 Hz
