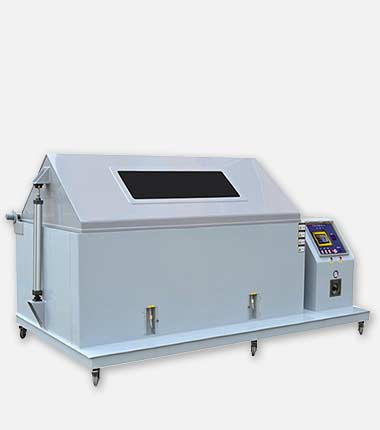

Salt Spray Test Chambers

Use to test the corrosion resistance of the surface of various material after anti-corrosion treatment such as eletroplating, anodizing, spraying, anti-rust oil and so on.
Mainly stimulate the impact of maritime climate on product quality and assesses its anti-corrosion ability according to standards.

Chamber Volume	108L	270L	480L	800L	1440L
Inner Size (WDH)(cm)	600400450	900500600	1200500800	16005001000	20006001200
Outer size (WDH)(cm)	11501090672	14501200842	208012581240	248015201450	290015501650
Salt Water Volume (L)	15	25	40	40	40
Chamber Temp	Salt water method (NSS ACSS) 35±1℃ / Corrosion resistance method (CASS) 50±0.1℃
Pressure Tank Temp	Salt water method (NSS ACSS) 47±1℃ / Corrosion resistance method (CASS) 63±0.1℃
Saline Concentration	Add 0.26g of copper chloride per liter in 5% NaCl solution or 5% CuCl₂·2H₂O solution
Compressed Air Pressure	1.00±0.01 kgf/cm²
Amount of Spray	1.0-2.0ml/ 80cm²/h, collect at least 16 hrs, take the average
pH Value	For NSS ACSS, 6.5-7.2; For CASS, 3.0-3.2
Spray Method	Continuous spray / Optional intermittent spray
Power	AC220V1 10A	AC220V1 15A	AC220V1 20A	AC220V1 20A	AC220V1 30A

Chamber Volume	8m³	12m³	16m³	Non standard
Studio Size (mm)	200020002000	30002000200	40002000200	Customized
Chamber Temp	NSS ACSS 35±1℃ / CASS 50±0.1℃ / 10℃-70℃ composites
Pressure Tank Temp	Salt water method (NSS ACSS) 47±1℃ / Corrosion resistance method (CASS) 63±0.1℃
Humid Range	30-98%RH
Saline Concentration	Add 0.26g of copper chloride per liter in 5% NaCl solution or 5% CuCl₂·2H₂O solution
Compressed Air Pressure	1.00±0.01 kgf/cm²
Amount of Spray	1.0-2.0ml/ 80cm²/h, collect at least 16 hrs, take the average
Lab Relative Humid	Above 85%
pH Value	For NSS ACSS, 6.5-7.2; For CASS, 3.0-3.2
Spray Method	Continuous spray / Optional intermittent spray
Power	AC380V, 3P 28.6kW	AC380V, 3P 30.6kW	AC380V, 3P 32.6kW	Customized

Model	90	120	160	200
Inner Size (WDH)(mm)	900620600	12007601000	16007601000	20007601100
Outer Size (WDH)(cm)	245015531430	283015601830	323015601830	363015601930
Temp Range	RT-70℃ / -10℃-80℃
Humid Range	20-98%RH
Water Spray Pressure	8,000-10,000kPa
T,H Accuracy/Uniformaty	0.1℃; 0.1%RH / ±2.0℃; ±3.0%RH
Chamber Temp	NSS ACSS 35±1℃ / CASS 50±0.1
Pressure Tank Temp	Salt water method (NSS ACSS) 47±1℃ / Corrosion resistance method (CASS) 63±0.1℃
Brine Temp	35±1℃ 50±1℃
Saline Concentration	Add 0.26g of copper chloride per liter in 5% NaCl solution or 5% CuCl₂·2H₂O solution
Compressed Air Pressure	1.00±0.01 kgf/cm²
Amount of Spray	1.0-2.0ml/ 80cm²/h, collect at least 16 hrs, take the average
Lab Relative Humid	Above 85%
pH Value	For NSS ACSS, 6.5-7.2; For CASS, 3.0-3.2
Spray Method	Continuous spray / Optional intermittent spray
Power	AC380V, 3P 20A	AC380V, 3P 23A	AC380V, 3P 25A	AC380V, 3P 30A
