Product Name:

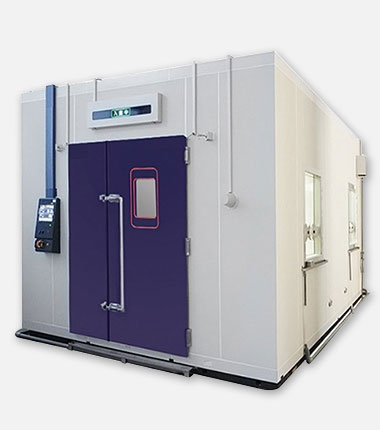

High Temperature Aging Room

MS88 Test Chamber - High Temperature Aging Room
Function
  • High-performance electronic product to stimulate high temperature and other harsh environment testing equipment.
  • To improve product of test equipment for stability and reliability which is also an important production process for manufacturers to improve the product quality and competitiveness.
Description
  • Usually consists of a retaining structure, a control system, an indoor test structure, and the like.
Core strength
  • Advanced temperature control technology
  • Metering result report
  • Energy saving up to 35%
NW Capacity 8m3 12m3 16m3 25m3 34m3 40m3
Inner size (W*D*H)(cm) 200*200*200 200*300*200 220*350*210 300*400*210 340*480*220 400*500*220
Outer size (W*D*H)(cm) 230*360*240 230*460*240 246*520*250 330*560*250 370*660*270 430*660*270
Net weight (kg) Based on the actual weight
Exterior material Standard color steel plate/cold-roll steel sheets with coating/laminating metal sheet
Interior material Stainless steel plate SUS#304
Temp Range RT to 80℃/100℃/120℃/150℃/180℃
Temp Fluctuation ±0.5℃
Temp Variation in Space ±2℃
Heat Up of Temp 3℃/min;
or customized
Floor Load Resistance Customized
Door Single or double door or customized
Configuration Interface With USB, WLAN, RS232 port, APP function is optional
Power supply AC 380V 50Hz
